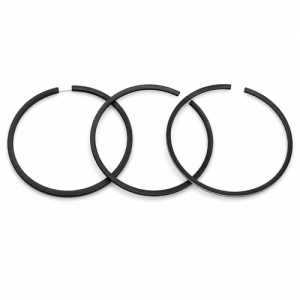

Standard piston ring set Rehlko-Kohler-Lombardini 6LD - ED0082110560-S

What it is for

The Rehlko-Kohler-Lombardini 6LD standard piston ring set with original code ED0082110560-S is designed to restore piston sealing in diesel engines with a nominal cylinder bore of 86 mm.

The piston rings seal the combustion chamber, control the oil film on the cylinder wall and transfer heat from the piston to the cylinder. Replacing worn rings helps restore compression and reduce oil consumption, exhaust smoke and blow-by.

The standard-size version is intended for unmachined cylinders with a nominal Ø86.00 mm bore. It is compatible with 6LD400, 6LD400/C, 6LD400/V, 6LD435, 6LD435/V and 6LD435/B1, as well as 10LD400-2 and 12LD435-2 twin-cylinder applications using the same bore and piston-ring reference.

Why choose this kit

What's in the kit

Technical data sheet

Doubts about compatibility?

Standard and oversized piston rings are available for these engines. Part ED0082110560-S is intended for the nominal Ø86.00 mm bore. Before ordering, check the cylinder bore, any previous machining and the reference of the removed piston-ring set.
