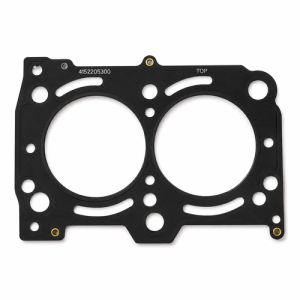

2-hole cylinder head gasket Rehlko-Kohler-Lombardini FOCS 702 - ED0047308270-S

What it is for

The Rehlko-Kohler-Lombardini cylinder head gasket with original code ED0047308270-S seals the joint between the cylinder block and cylinder head on twin-cylinder diesel engines from the FOCS 702 family.

The gasket separates the combustion chambers from the oil and coolant passages, preserving compression and preventing gases or fluids from passing between the circuits. A damaged gasket may cause overheating, loss of compression, coolant consumption or oil contamination.

This version is identified by 2 holes and has a nominal thickness of approximately 1.66 mm, listed in the application catalogue within a 1.66–1.74 mm range. It is compatible with LDW 702, LDW 702/P, LDW 702 M and KDW 702 engines in the specified serial-number configurations.

Why choose this product

Technical data sheet

Doubts about compatibility?

Several head-gasket thicknesses are available for LDW/KDW 702 engines and are identified by holes or notches. Part ED0047308270-S is the intermediate 2-hole version. Before ordering, check piston protrusion, the removed gasket and the engine serial number.
